Category:
Bulb Light

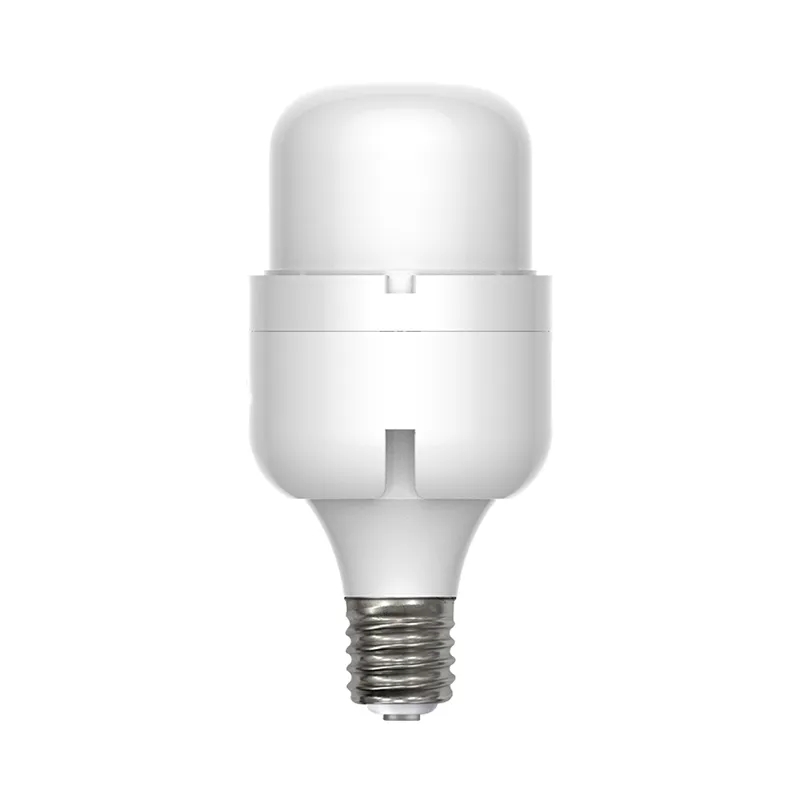

High-Power Pillar-Shaped LED Bulb, Integrated Cooling Fan
Product Code LBL004
Brand:
小象贾洛
Unit:
件
HS Code:
8539.50
Select Specifications
Voltage:
Power:
Color Temperature:
Base Type:
Price:
Price on Request
* Login to view your exclusive price
Minimum Order Quantity:
3000
Specifications
📝 Detailed Specifications
Input Voltage: AC 110V / 180–265V
Power Consumption: 35W / 45W / 60W / 80W
Base: E27 / B22
Dimensions: Ø110*230
Luminous Flux: 105-110LM/W
Color Temperature (CCT): 3000K / 4500K / 6000K
Color Rendering Index (CRI): ≥80
Beam Angle: 160°
Power Factor (PF): ≥0.8
Dimming Option: Dimmable / Non-dimmable (optional)
Operating Temperature: -20°C to +40°C
Housing Material: Flame-retardant PC body
Heat Dissipation Structure: Integrated Cooling Fan
Diffuser Material: High-transmittance PC diffuser
Rated Lifetime: ≥20,000 hours (L70)
Warranty: 3-year limited warranty
Power Consumption: 35W / 45W / 60W / 80W
Base: E27 / B22
Dimensions: Ø110*230
Luminous Flux: 105-110LM/W
Color Temperature (CCT): 3000K / 4500K / 6000K
Color Rendering Index (CRI): ≥80
Beam Angle: 160°
Power Factor (PF): ≥0.8
Dimming Option: Dimmable / Non-dimmable (optional)
Operating Temperature: -20°C to +40°C
Housing Material: Flame-retardant PC body
Heat Dissipation Structure: Integrated Cooling Fan
Diffuser Material: High-transmittance PC diffuser
Rated Lifetime: ≥20,000 hours (L70)
Warranty: 3-year limited warranty
Packaging Information
Per Unit
0.000 kg
0.000000 m³
Weight / Volume
Per Carton
5 pcs
-
- kg
Qty / Size / Gross Weight
20' Container
-
Cartons
≈33m³
40' Container
-
Cartons
≈67m³
40'HQ Container
-
Cartons
≈76m³
Product Description
This high-power pillar-shaped LED bulb is specifically engineered for industrial lighting, warehouse logistics, commercial spaces, and high-bay applications. Featuring high-efficiency LED chips and active cooling technology, it delivers exceptional brightness within a compact form factor, serving as the ideal replacement for traditional high-power energy-saving lamps and metal halide lamps. It provides businesses with an energy-efficient, long-lasting, and low-maintenance lighting solution.
Core Advantages
🔥 Active Cooling Technology
Integrated silent cooling fan overcomes the limitations of traditional passive heat dissipation, ensuring stable chip temperature control even under high-power operation. With minimal light degradation during prolonged continuous use and extended lifespan, it's suitable for harsh environments including high-temperature areas and enclosed fixtures.
💡 High-Efficiency Design
Utilizing imported high-efficiency LED chips, the entire luminaire achieves an impressive efficacy of 105-110LM/W, delivering 50%+ energy savings compared to conventional light sources at equivalent brightness levels. Multiple power options (35W-80W) allow flexible matching to various ceiling heights and illumination requirements.
🛡️ Industrial-Grade Protection
Flame-Retardant PC Housing: V0-grade flame-retardant material, heat-resistant and impact-resistant
High-Transmittance Diffuser: Uniform and soft light distribution, no glare, no dark areas
Wide Voltage Design: AC 110V-265V universal voltage, adaptable to grid fluctuations
Optional Dimming Function: Meets smart lighting scenario requirements
Application Scenarios
Industrial Facilities: Production lines, assembly workshops, warehouses
Commercial Spaces: Supermarkets, retail stores, exhibition halls
Public Facilities: Underground parking garages, corridors, passageways
Outdoor Canopies: Gas stations, logistics platforms (with weatherproof fixtures)
Quality Assurance
3-Year Extended Warranty: Exceeding industry standards, worry-free after-sales service
20,000-Hour Lifespan: L70 standard verified, near-zero annual maintenance costs
Strict Quality Control: 100% aging test, each bulb undergoes 8+ hours of power-on inspection before shipment
